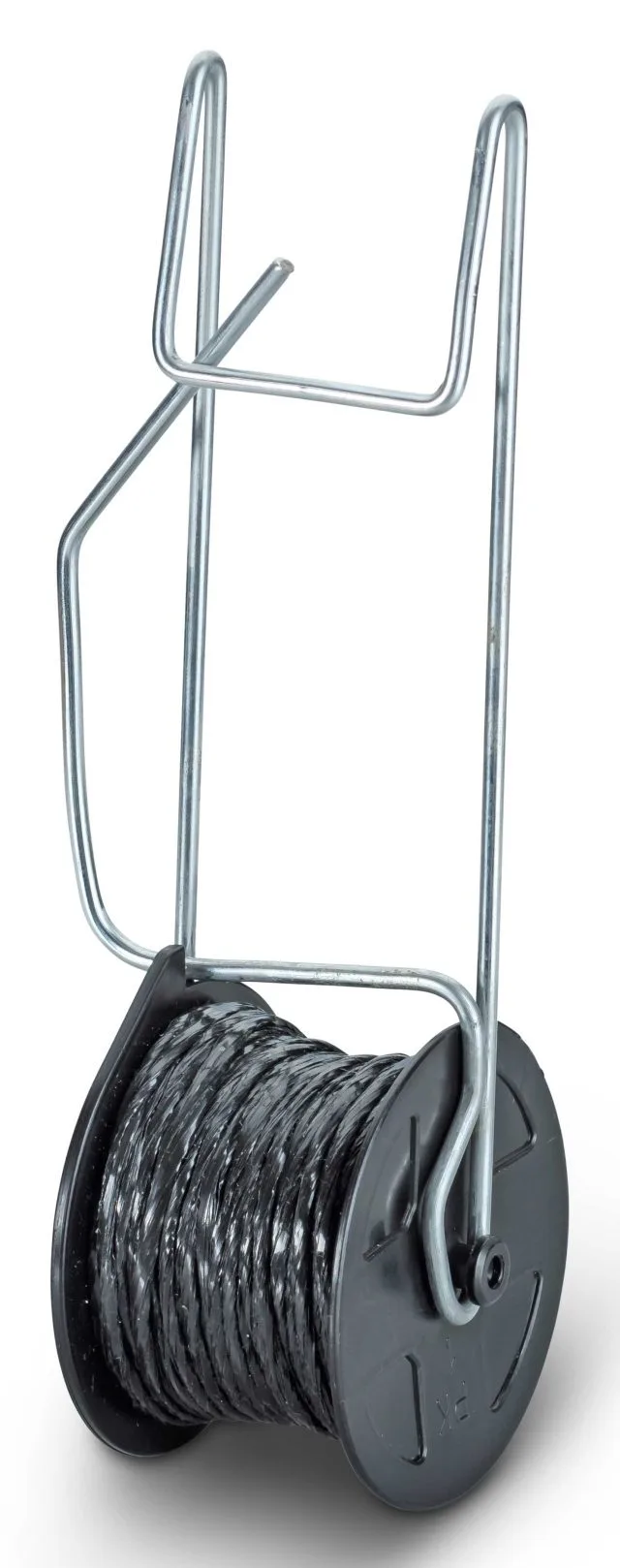

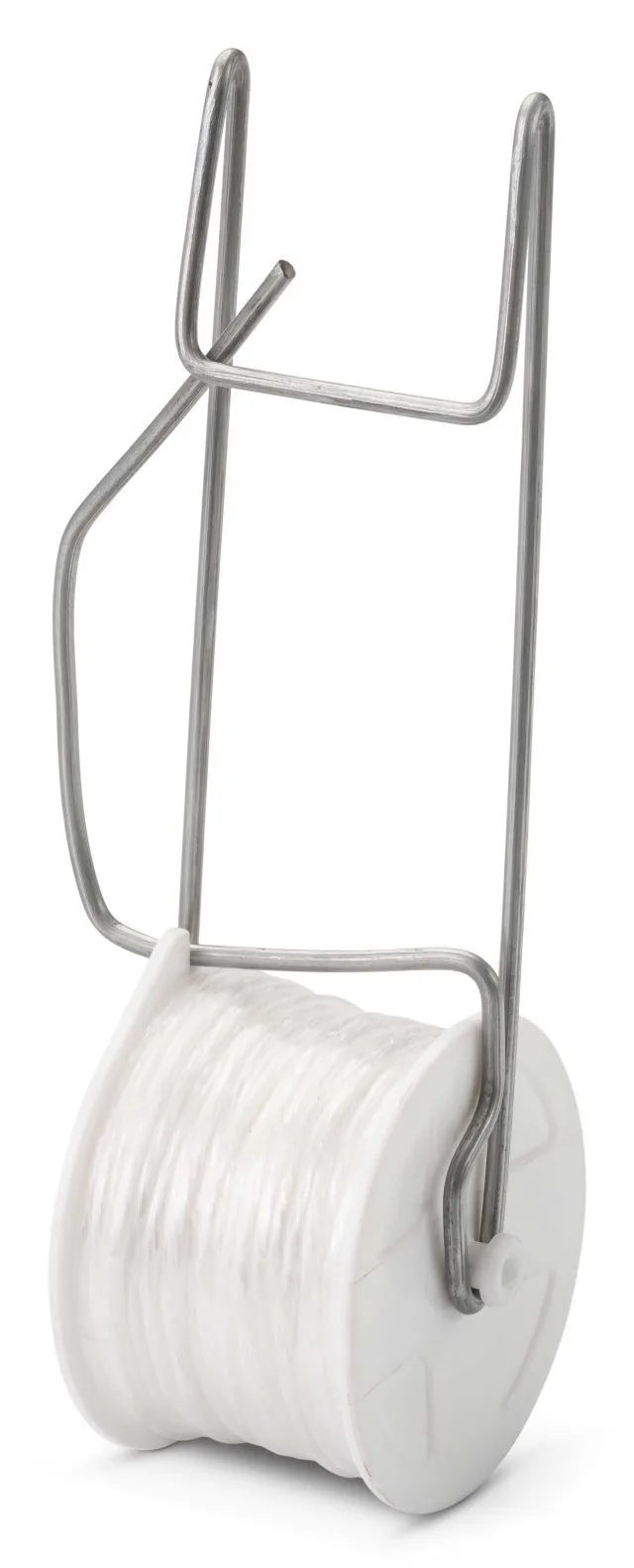

RollerHook Assembled

Cat# 541as (540m+540sp)

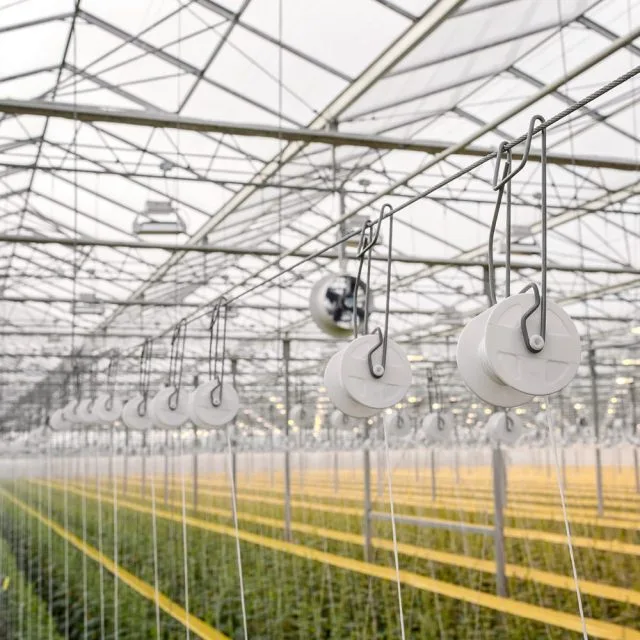

With RollerHook, trellising has never been so simple.Specially designed to ensure a full control of plant's lowering at minimum cost, the Roller Hook is composed of a reusable multi-seasonal metal frame and a strong disposable spool.RollerHook is the perfect solution for an easy and efficient trellising of greenhouse tomato plants.
  • Quick and easy installation
  • Quick lowering, 1200-1500 plants an hour
  • Preventing plant “stress”
  • Slow release
  • Special design preventing accidental slipping off the trellis wire
  • Disposable spool with up to 36 meters of 1/1200 twine with 2% UV resistance.
  • Spool length of 48 meters of 1/1500 twine with 2% UV resistance, allows for multiple crops (4-5) and up to two years of use (in cucumbers)
  • Minimize workers injuries and fatigue on arms and wrists
  • Up to three consecutive growing cycles. After two or three seasons and when spool run out of twine, is when new spools will need to be purchased
  • Low-cost use

To install RollerHook on the trellising wire:

  • Hang RollerHook on the trellis wire
  • Verify that the locking handle faces the direction in which the plant is lowered



To lower the plant:

  • Hold the twine in one hand
  •  Using the other hand, squeeze the locking handle to release the stopper
  •  Release the twine downwards while moving RollerHook along the trellis wire in the direction that the plant is lowered



Description
With RollerHook, trellising has never been so simple.Specially designed to ensure a full control of plant's lowering at minimum cost, the Roller Hook is composed of a reusable multi-seasonal metal frame and a strong disposable spool.RollerHook is the perfect solution for an easy and efficient trellising of greenhouse tomato plants.
Advantages
  • Quick and easy installation
  • Quick lowering, 1200-1500 plants an hour
  • Preventing plant “stress”
  • Slow release
  • Special design preventing accidental slipping off the trellis wire
  • Disposable spool with up to 36 meters of 1/1200 twine with 2% UV resistance.
  • Spool length of 48 meters of 1/1500 twine with 2% UV resistance, allows for multiple crops (4-5) and up to two years of use (in cucumbers)
  • Minimize workers injuries and fatigue on arms and wrists
  • Up to three consecutive growing cycles. After two or three seasons and when spool run out of twine, is when new spools will need to be purchased
  • Low-cost use
Usage Recommendations

To install RollerHook on the trellising wire:

  • Hang RollerHook on the trellis wire
  • Verify that the locking handle faces the direction in which the plant is lowered



To lower the plant:

  • Hold the twine in one hand
  •  Using the other hand, squeeze the locking handle to release the stopper
  •  Release the twine downwards while moving RollerHook along the trellis wire in the direction that the plant is lowered



Crops
Cherry Tomatoes
Cherry Tomatoes
Cucumbers
Cucumbers
Tomatoes
Tomatoes
Material
Hook - Galvanized SteelSpool + 2% UV resistance twine - Polypropylene
Parameter541sp542sp*540m541as

Twine length – PP twine 1/1500 (m)Up to 48NANAUp to 48
Twine length – PP twine 1/1200 (m)Up to 36Up to 17*2NA Up to 36
Weight (gr)Depends on the type and length of twineDepends on the type and length of twine22.7Depends on the type and length of twine
Suitable for wire diameter (mm)NANA2.5-42.5-4
Twine - 1 season (lowering 4 times min.)Spool - 3 years
In a cool, dry place, away from heat, away from direct sunlight. Storage temperature should not exceed 60ºC
Parameter541sp542sp*540m541as
Units per box (pcs)550 550550350
Boxes per pallet32/2832/2848/4032/28
Box size L x W x H (cm)56 x 47 x 2856 x 47 x 2857 x 49 x 1856 x 47 x 28
Technical Specifications
Parameter541sp542sp*540m541as

Twine length – PP twine 1/1500 (m)Up to 48NANAUp to 48
Twine length – PP twine 1/1200 (m)Up to 36Up to 17*2NA Up to 36
Weight (gr)Depends on the type and length of twineDepends on the type and length of twine22.7Depends on the type and length of twine
Suitable for wire diameter (mm)NANA2.5-42.5-4
Durability
Twine - 1 season (lowering 4 times min.)Spool - 3 years
Storage
In a cool, dry place, away from heat, away from direct sunlight. Storage temperature should not exceed 60ºC
Packaging
Parameter541sp542sp*540m541as
Units per box (pcs)550 550550350
Boxes per pallet32/2832/2848/4032/28
Box size L x W x H (cm)56 x 47 x 2856 x 47 x 2857 x 49 x 1856 x 47 x 28
